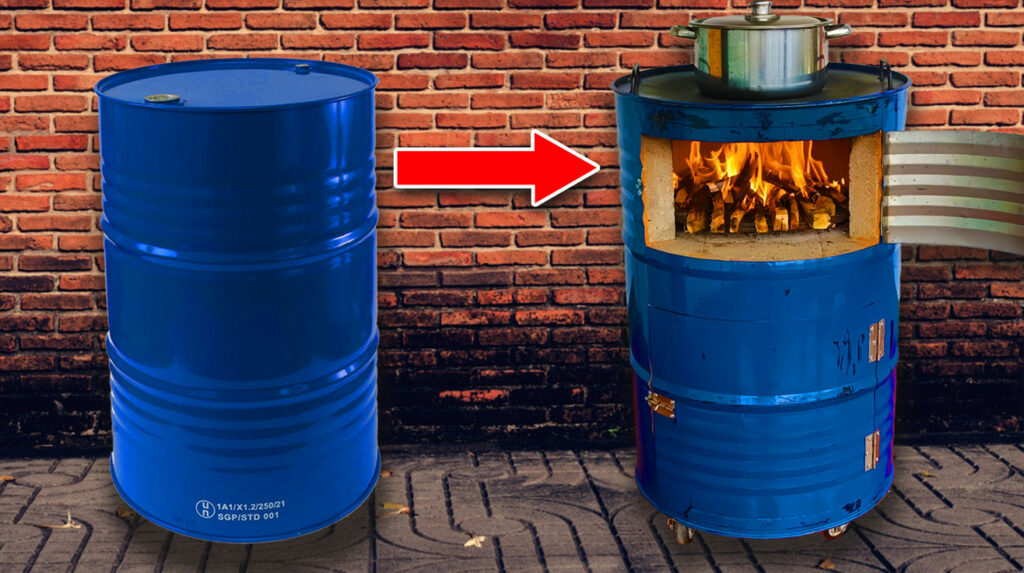

Bear in mind when survival video games taught us to transform random junk into helpful instruments? That’s precisely what this barrel range mission delivers in actual life. A 55-gallon drum transformation places owners squarely accountable for their heating future, slashing winter bills by $500-1,000 in comparison with factory-built choices. The expertise isn’t new – folks have been hacking metal drums into warmth sources for generations – however the outcomes stay spectacular in 2025.
This metal workhorse produces 30,000-40,000 BTUs hourly, sufficient to heat 1,000 sq. ft when the temperature drops to ridiculous ranges. Plus, builders acquire hands-on expertise with steel fabrication that transfers to numerous different initiatives. The heating equal of jailbreaking your telephone, barrel stoves characterize that candy intersection of sustainability, affordability, and pure DIY satisfaction.
Disclaimer: Some pictures used for commentary and academic functions below truthful use. All rights stay with their respective house owners.
Supplies Wanted
The components record received’t overwhelm a workbench or pockets. Begin with a 16-gauge metal drum – primarily a clean canvas that safely comprises precise hearth. {Hardware} for meeting consists of 12-15 quarter-inch bolts with matching nuts and washers, the fasteners that stop the creation from turning into an unintentional fireworks show.
Mandatory additions embrace 3-4 ft of 6-inch diameter range pipe, a correct adapter collar, a handful of fire-resistant bricks, high-temp silicone sealant, two strong door hinges, and one sturdy latch mechanism. For enhanced sturdiness, 1200°F-rated heat-resistant paint makes a worthwhile funding. Sensible builders hit up scrapyards and market apps first – why shell out $60-100 for a pristine drum when recycled ones run $15-30? That weathered patina isn’t simply cheaper; it provides character, very similar to classic tech in some way seems to be cooler than its trendy counterparts.
Instruments Required
The tech stack for this construct begins with security gear – no exceptions. Welding gloves, correct security glasses, and a respirator rated for metalwork fumes kind an important safety suite. Take into account them the last word firewall towards the very actual risks of steel fabrication.
{Hardware} necessities proceed with an angle grinder (the delete key of the bodily world), steel shears for precision cuts, and ideally some welding tools – a fundamental MIG welder serves completely for learners. The toolkit rounds out with a tape measure, degree, drill, and steel marking implements.
Step 1: Getting ready the Drum
Security protocol initiates with thorough decontamination. That innocent-looking drum may need transported something from olive oil to industrial solvents, so a complete cleansing with degreasing cleaning soap and scorching water isn’t non-obligatory. For thriller drums with unknown histories, the nuclear choice works finest: fill with water, add a cup of baking soda, and let it sit in a single day to neutralize chemical remnants that would turn out to be airborne hazards when heated.
As soon as sanitized, the transformation begins. Marking the door location about 4-6 inches from the underside offers optimum positioning for loading wooden and managing airflow. Minimize a exact 12×12-inch opening utilizing an angle grinder, then create a 6-inch gap within the prime heart for the exhaust stack. Taking time to clean these razor-sharp edges with a file prevents the blood sacrifice that primitive tech initiatives usually demand. These operations ought to all the time occur outdoor or in workshop areas with industrial-grade air flow – steel mud and fumes characterize invisible system threats respiratory {hardware} wasn’t designed to course of.
Step 2: Creating the Door
The door part requires surgical precision. Reducing a 14×14-inch part of 14-gauge metal creates an important 1-inch overlap across the opening. This outsized strategy works precisely like smartphone display screen protectors – extending past the vital space ensures full protection the place it issues most.
Place two heavy-duty hinges on the left edge – one three inches from the highest, one other three inches from the underside – and safe them by welding or bolting to each drum and door. The proper aspect wants a tension-creating latch mechanism that pulls the door firmly towards the opening. For temperature regulation, a 2-inch gap close to the underside with a fabricated sliding cowl works like a digicam aperture, controlling oxygen circulation to the combustion chamber. This seemingly easy vent features as the first interface for warmth output – the analog equal of a processing throttle management. Earlier than continuing, take a look at the door operation repeatedly; it ought to swing easily however seal fully when closed, with zero wobble tolerance.
Step 3: Putting in the Range Pipe
The exhaust system set up represents probably the most vital security configuration. Connect a 6-inch range pipe adapter to the pre-cut gap, making use of high-temperature silicone sealant generously across the connection factors. This creates a gasket-like seal that stops poisonous combustion gases from escaping into residing areas – an important containment protocol.
Clearance necessities aren’t solutions; they’re necessary security parameters. Preserve minimal 18-inch distances from partitions and 36-inch separation from ceilings. When penetrating constructing boundaries, set up insulated chimney thimbles designed particularly for hearth prevention. The chimney extension should attain at the least three ft above roof penetration factors and stand two ft taller than any constructing part inside ten ft. These dimensions create optimum draft situations whereas stopping smoke recirculation throughout wind occasions – primarily establishing the proper exhaust runtime atmosphere that retains dwelling atmospheres separate from combustion byproducts.
Step 4: Including the Legs
The help construction calls for critical engineering consideration. A totally-loaded range weighs between 200-300 kilos – roughly equal to a medium-sized bike – and requires stability below dynamic working situations. 4 6-8 inch sections of 2-inch sq. metal tubing or angle iron function the muse.
Place these legs at quarter-points across the drum’s circumference, roughly 4-5 inches inward from the sting. Welding requires full-penetration connections that distribute weight evenly; bolted installations want 3/8-inch {hardware} with giant washers on each side to forestall stress focus and pull-through. As soon as assembled, stability testing from a number of angles and verification of excellent horizontal alignment with a degree software ensures even warmth radiation patterns and prevents operational hazards from shifting weight – primarily calibrating the system for optimum efficiency metrics whereas eliminating bodily instability variables.
Step 5: Firebox Development and Baffle Placement
The interior structure transforms a fundamental drum into a complicated heating equipment. A grate system roughly 4 inches from the ground facilitates ash separation and maintains constant oxygen circulation beneath the gas load. This part will be long-established from 1/2-inch metal rebar in grid configuration or repurposed from forged iron grates salvaged from out of date cooking tools.
The effectivity breakthrough comes from correct baffle set up – the thermal equal of putting in a customized processing chip. A 16×24-inch part of 16-gauge metal, fashioned right into a barely curved deflector and positioned six inches under the exhaust port, works completely. Safe it with brackets welded to the inside wall. This modification forces scorching gases to journey an extended route earlier than exit, extracting most thermal vitality switch to the house. The ensuing 25-30% effectivity acquire considerably reduces gas consumption whereas minimizing particulate emissions – primarily overclocking warmth manufacturing whereas lowering environmental influence and lengthening runtime between refueling cycles.
Security Issues
The safety protocols for wooden range operation go away zero margin for compromise. Set up a carbon monoxide detector inside 15 ft of the set up and confirm its performance month-to-month by take a look at button activation. This important safeguard offers early warning towards the invisible, odorless menace that bypasses human detection techniques fully.
Gas choice critically impacts each efficiency and security. Use solely dry, seasoned hardwood with moisture content material under 20% – correctly cured wooden produces a particular hole sound when items contact one another. Keep away from painted, handled, or manufactured wooden merchandise that launch poisonous compounds throughout combustion. Preserve clearance zones religiously: 36 inches from sides/again, 48 inches frontal clearance, and 18 inches beneath the unit. Common upkeep prevents harmful creosote accumulation; examine and clear the chimney system each 2-3 months throughout heavy use durations. Chimney fires attain temperatures exceeding 2000°F – scorching sufficient to compromise structural supplies and provoke catastrophic constructing fires inside minutes.
Extra Ideas and Modifications
Efficiency optimization alternatives exist for fans keen to implement superior modifications. Putting in a secondary air consumption on the higher rear portion creates a dual-combustion atmosphere that ignites in any other case wasted wooden gases, boosting thermal effectivity by as much as 30% whereas dramatically lowering emissions – just like how hybrid automobiles recapture vitality that conventional engines waste.
Thermal storage enhancements come from lining the decrease third with hearth bricks, making a warmth reservoir that continues radiating heat hours after energetic burning stops. Multi-function functionality emerges by including 20 ft of three/8-inch copper tubing across the higher drum part, related to a small reservoir tank. This passive system heats 5-10 gallons of water to roughly 120°F throughout regular operation, offering utility throughout energy outages or lowering typical water heating bills. Chimney optimization requires discovering the candy spot between ample draft and minimal warmth loss; 10-12 foot peak with 6-inch diameter usually delivers preferrred airflow traits whereas stopping backdraft incidents throughout adversarial climate situations.
